Making of Hotel Corridor

Michał Franczak 2014-10-30 13:36 tutorial  > 3ds MAX  > modeling

Simple interior with marble walls. Made with 3ds Max and V-Ray.

This scene was is included in Archinteriors vol. 32. You can buy Archinteriors vol. 32 in Evermotion Shop. This scene was modeled and set with 3DS Max and rendered with V-Ray (check V-Ray price!). This is rather simple scene, so this will not be a very long tutorial.

Click on image to enlarge nr_AI32_003_PP_102.jpg

This is the final image after post production.



Click on image to enlarge nr_AI32_003_wire_104.jpg

Wireframe



Scene setup

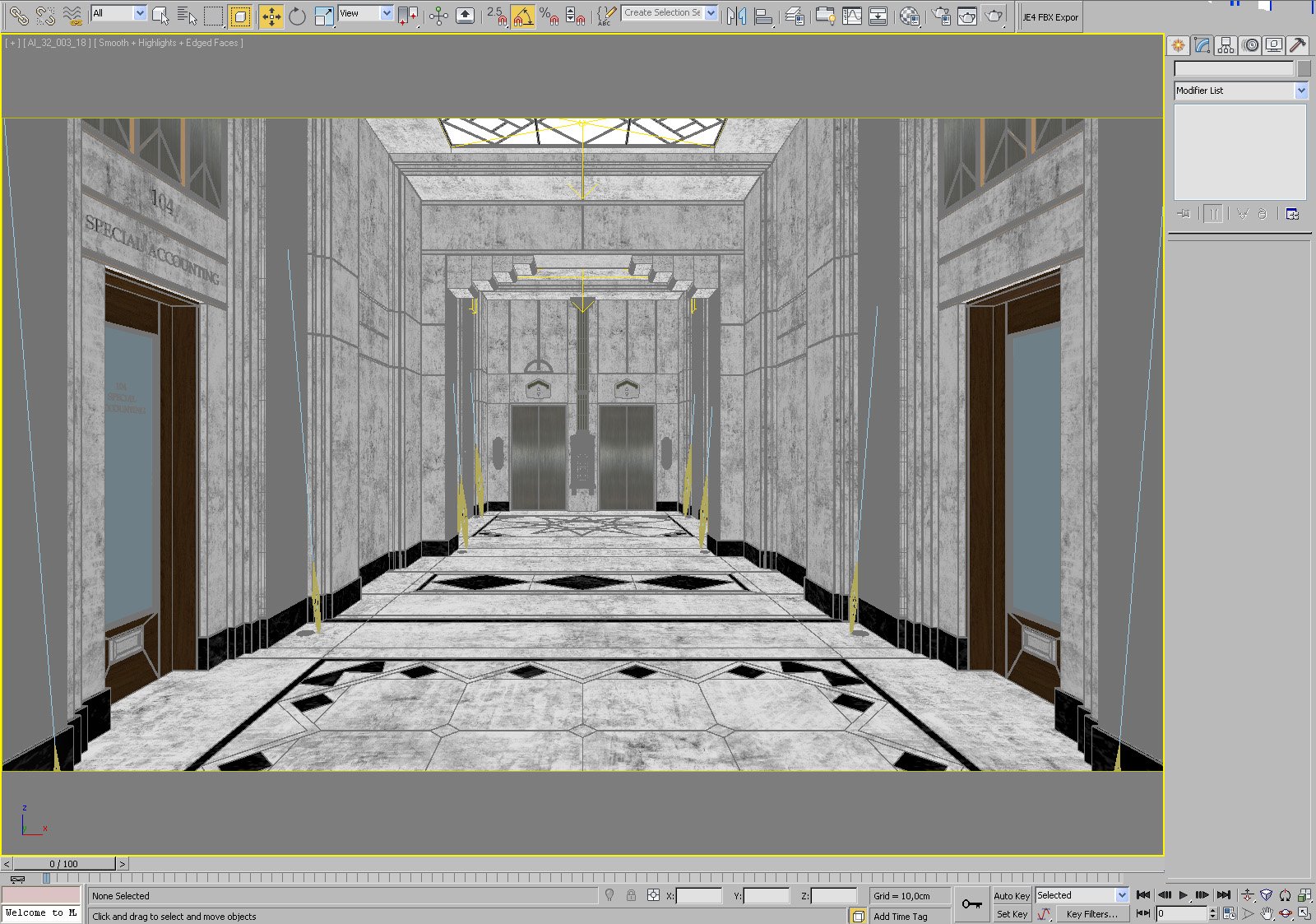

Click on image to enlarge nr_ae32_s03_0034_Layer_1_071.jpg

View from camera



Click on image to enlarge nr_ae32_s03_0033_Layer_2_099.jpg

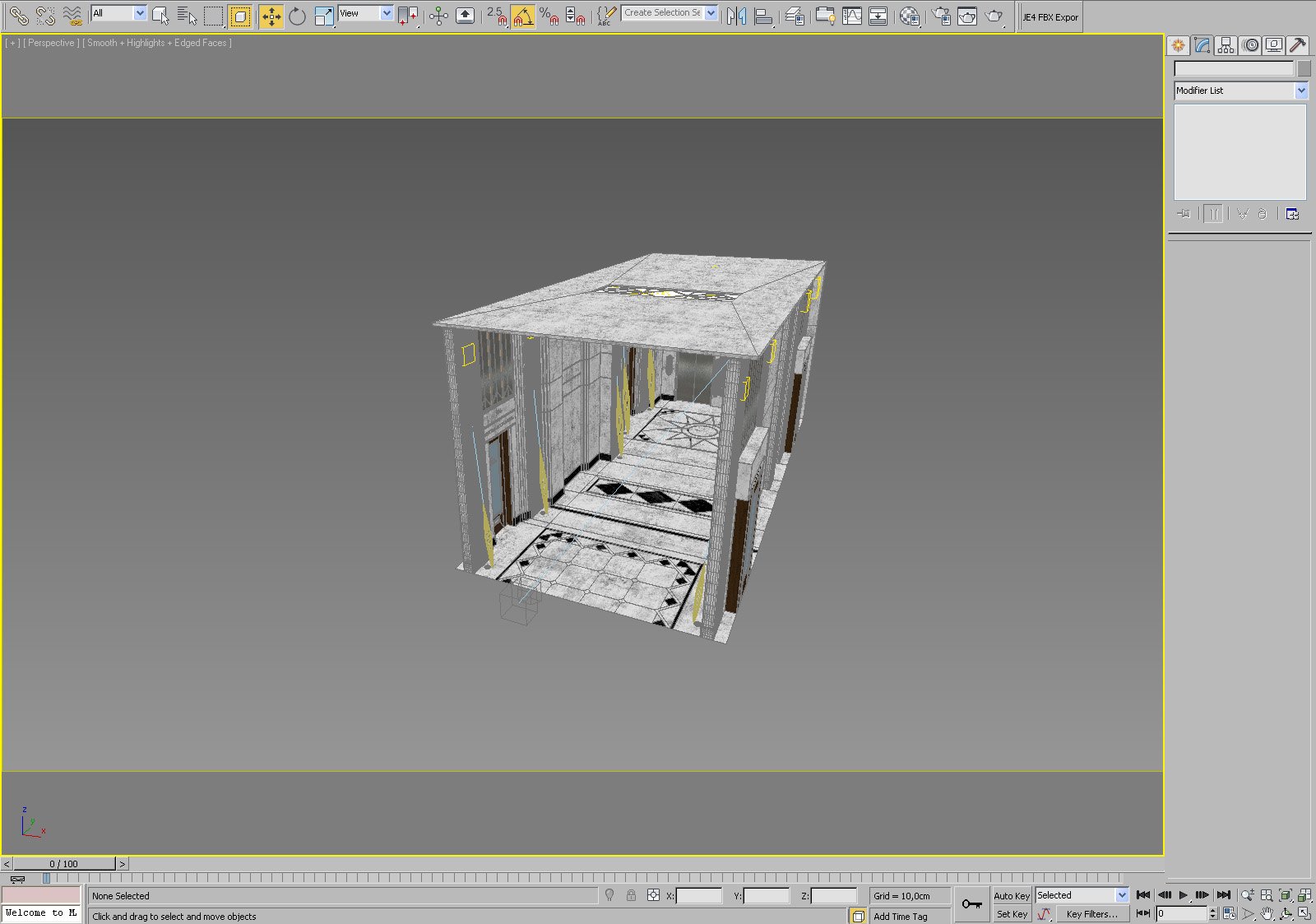

Overview of modeled scene

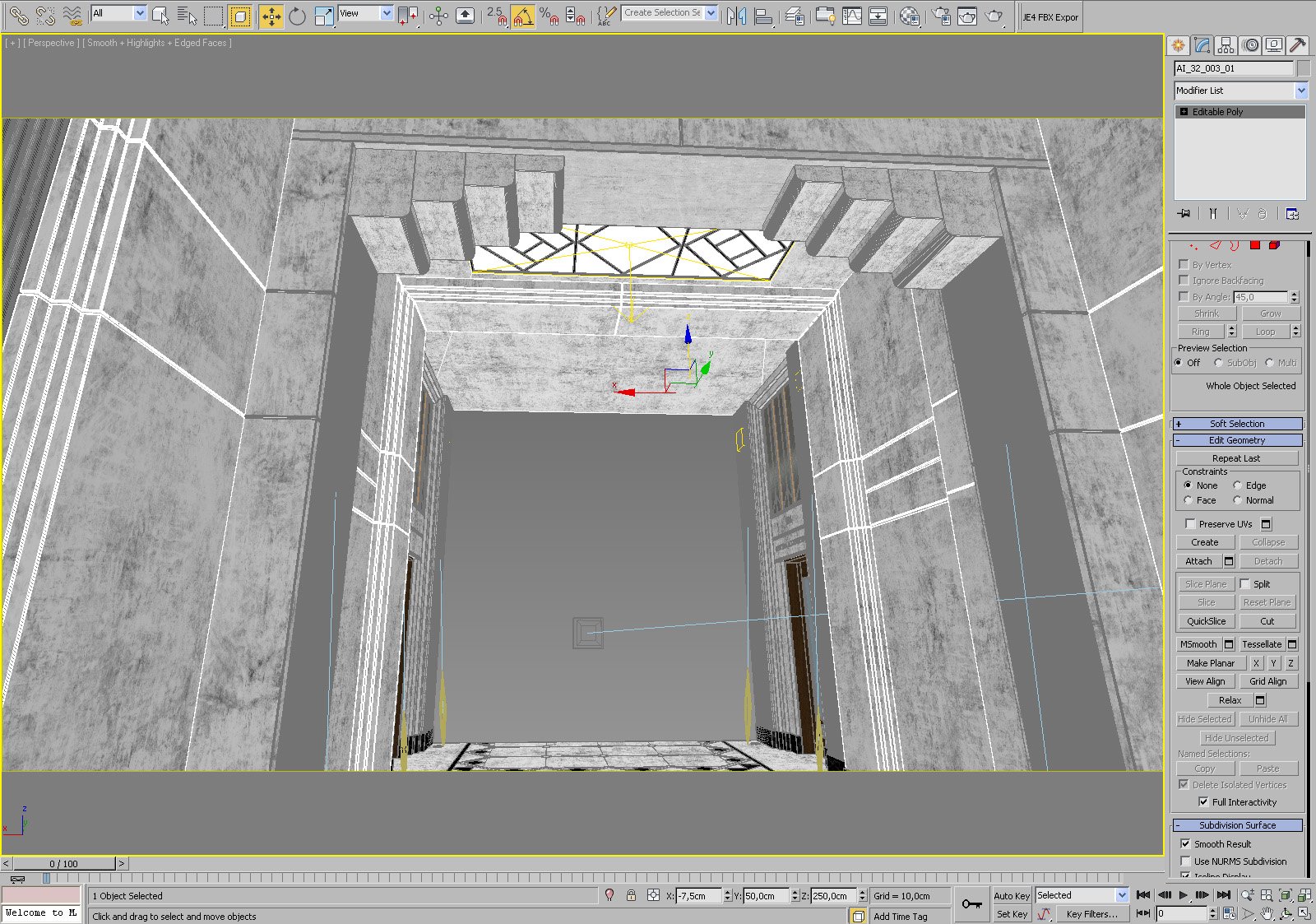

Click on image to enlarge nr_ae32_s03_0032_Layer_3_098.jpg

Camera placement

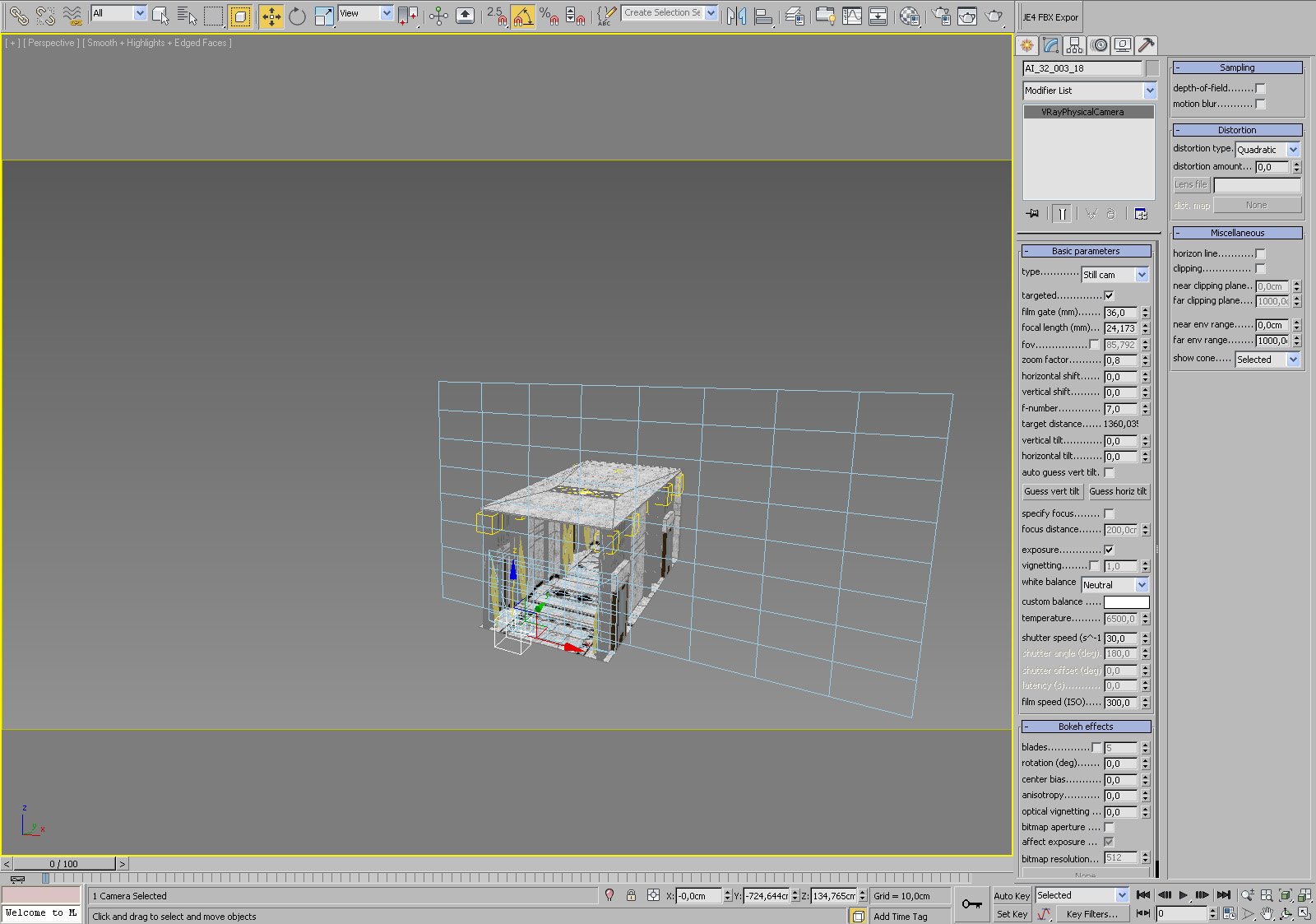

Click on image to enlarge nr_ae32_s03_0031_Layer_4_097.jpg

Camera settings



Lighting and environment

Click on image to enlarge nr_ae32_s03_0030_Layer_9_096.jpg

Top light settings

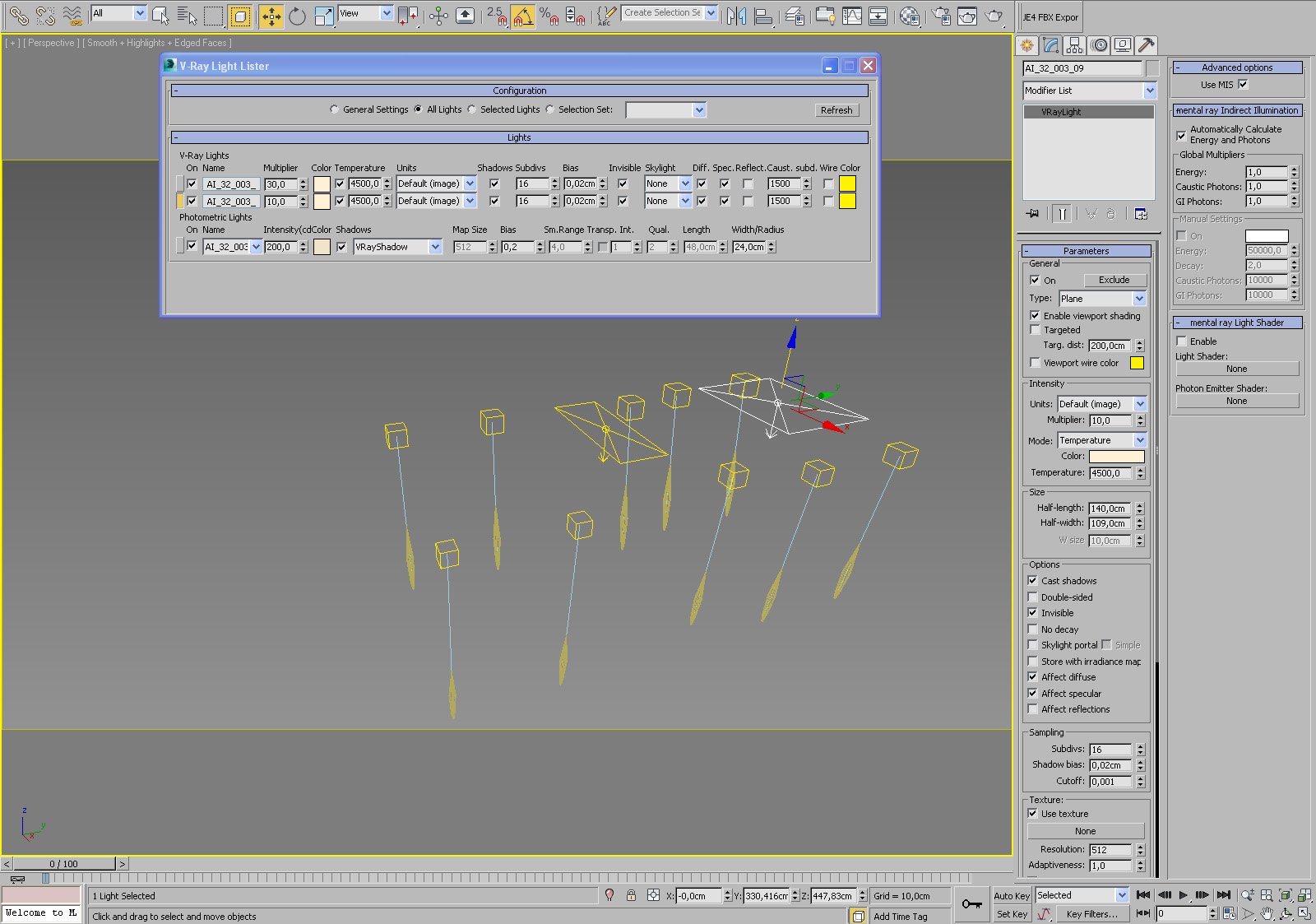

Click on image to enlarge nr_ae32_s03_0029_Layer_10_095.jpg

Second top light settings



Click on image to enlarge nr_ae32_s03_0028_Layer_11_094.jpg

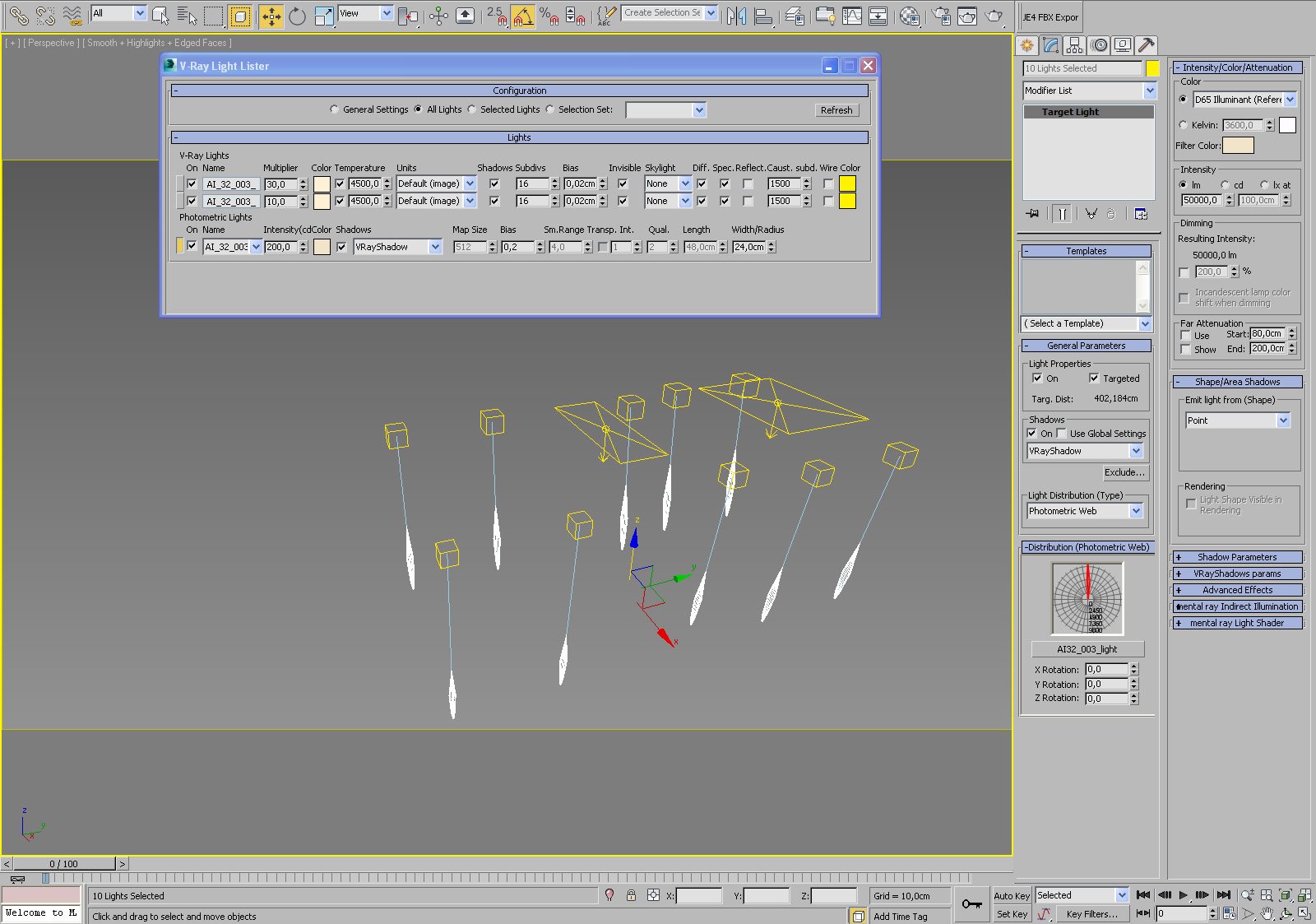

Target lights settings

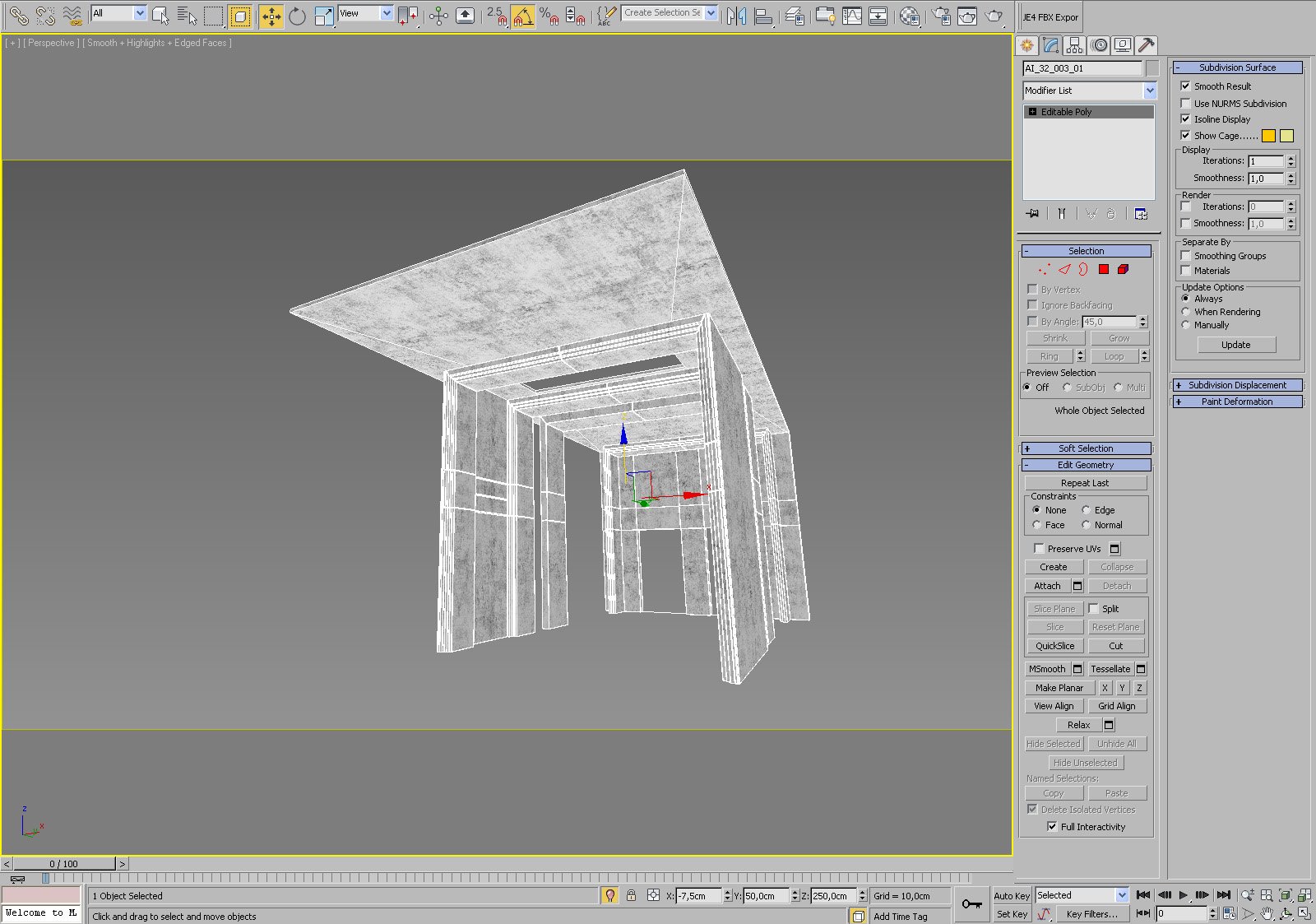

Click on image to enlarge nr_ae32_s03_0027_Layer_12_093.jpg

Marble walls and ceiling - simple boxy object.



Click on image to enlarge nr_ae32_s03_0026_Layer_13_092.jpg

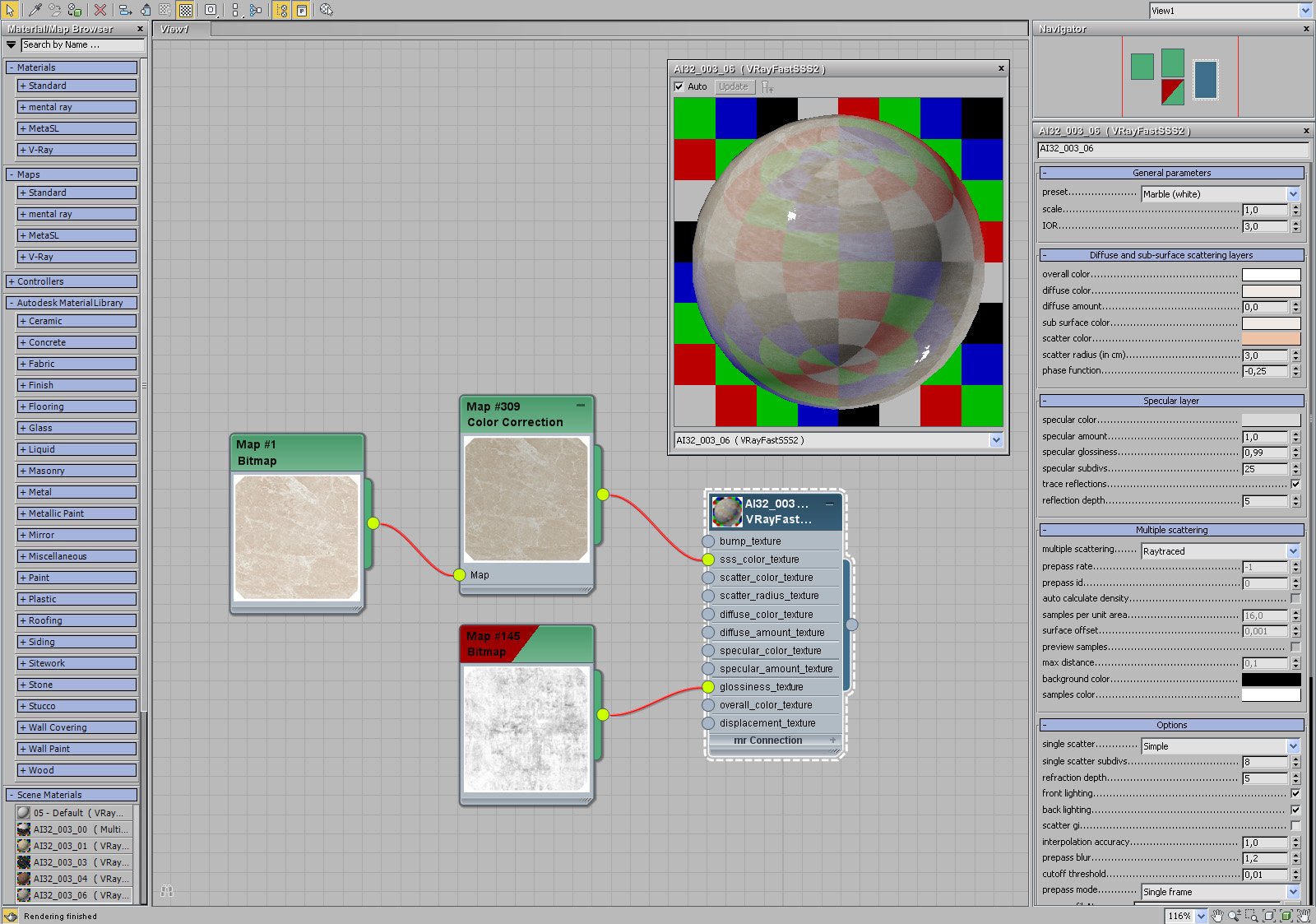

Light marble material settings. We used VrayFastSSS material.

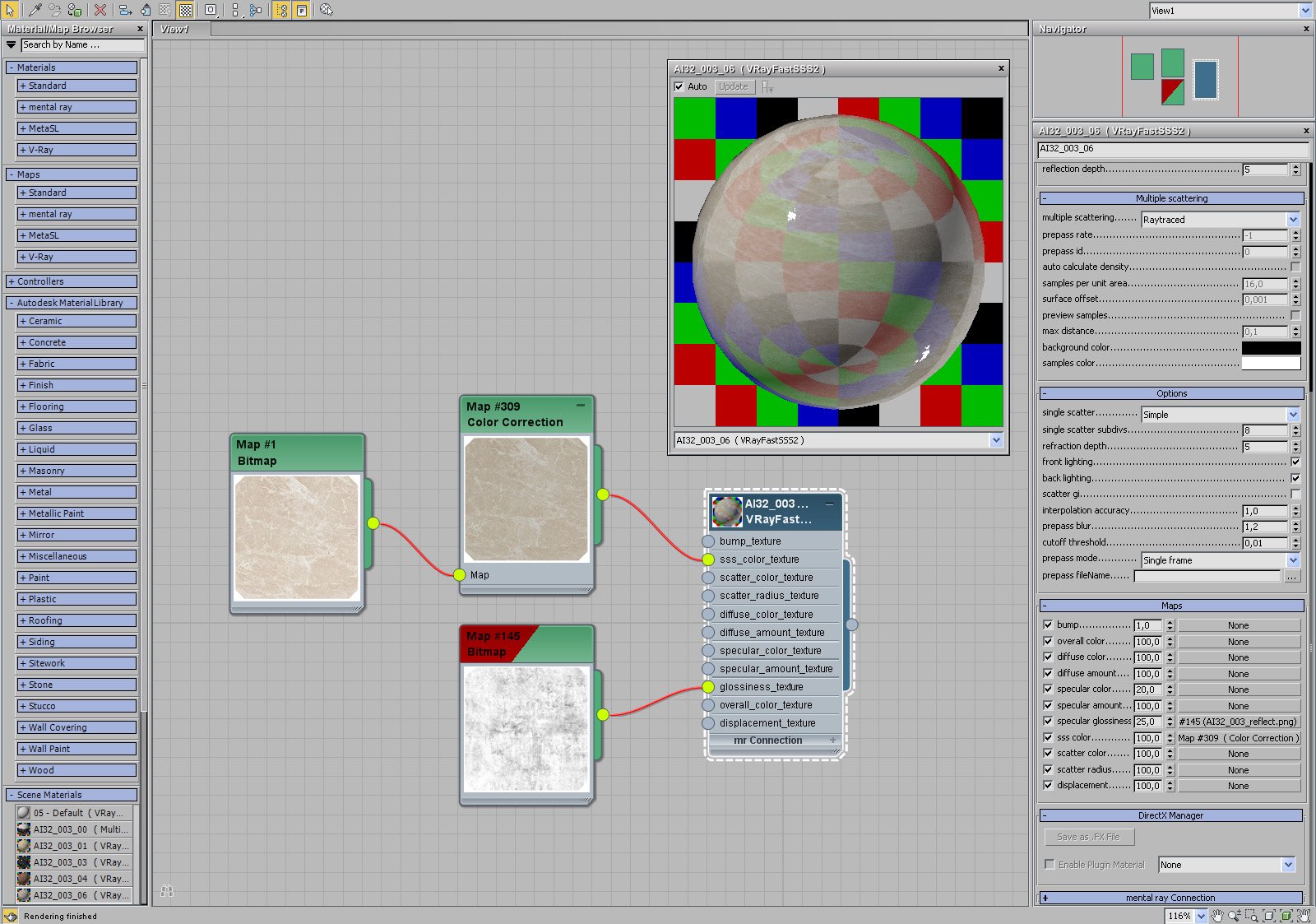

Click on image to enlarge nr_ae32_s03_0025_Layer_14_091.jpg

Maps settings





Click on image to enlarge nr_ae32_s03_0024_Layer_15_090.jpg

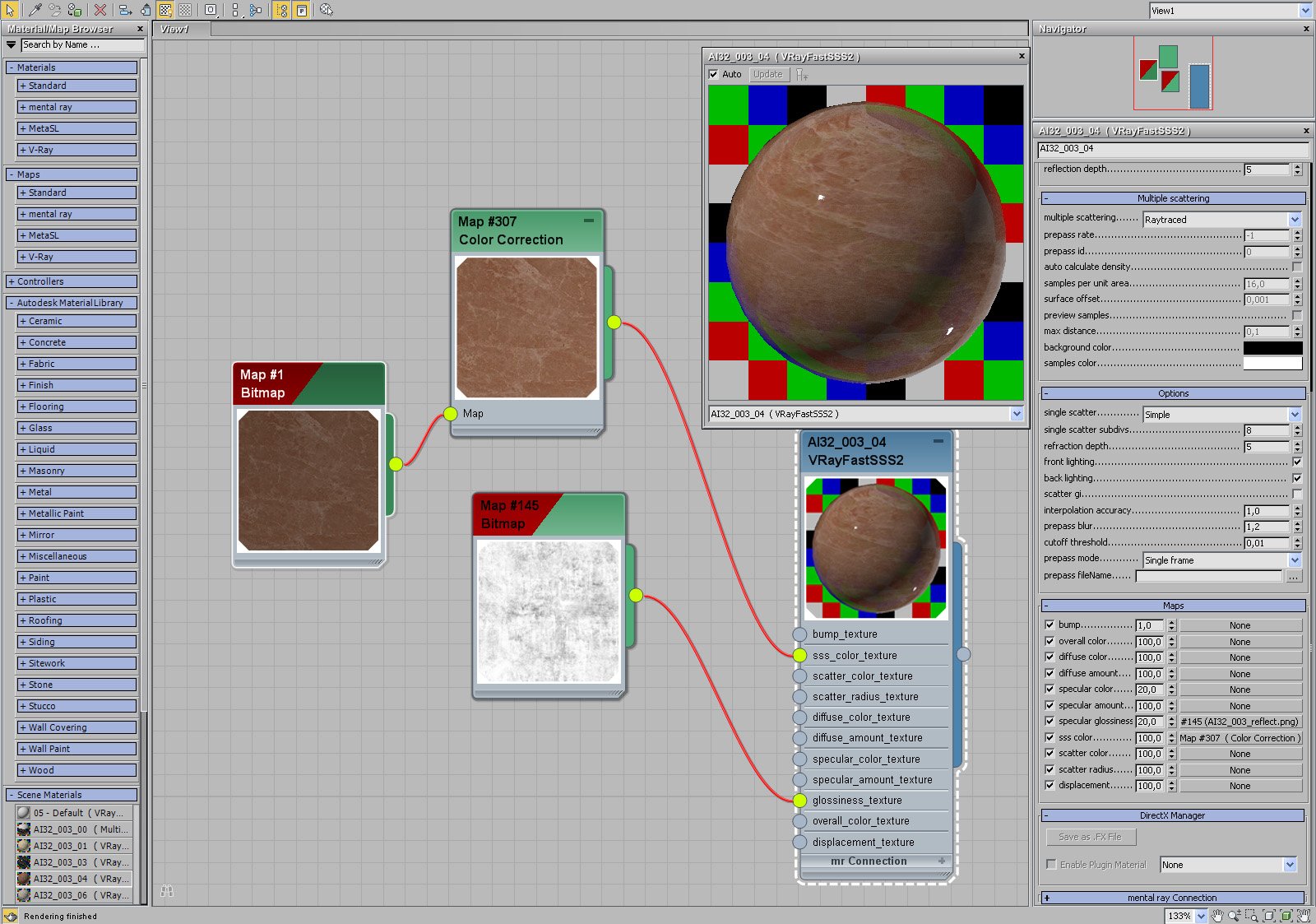

Dark marble settings

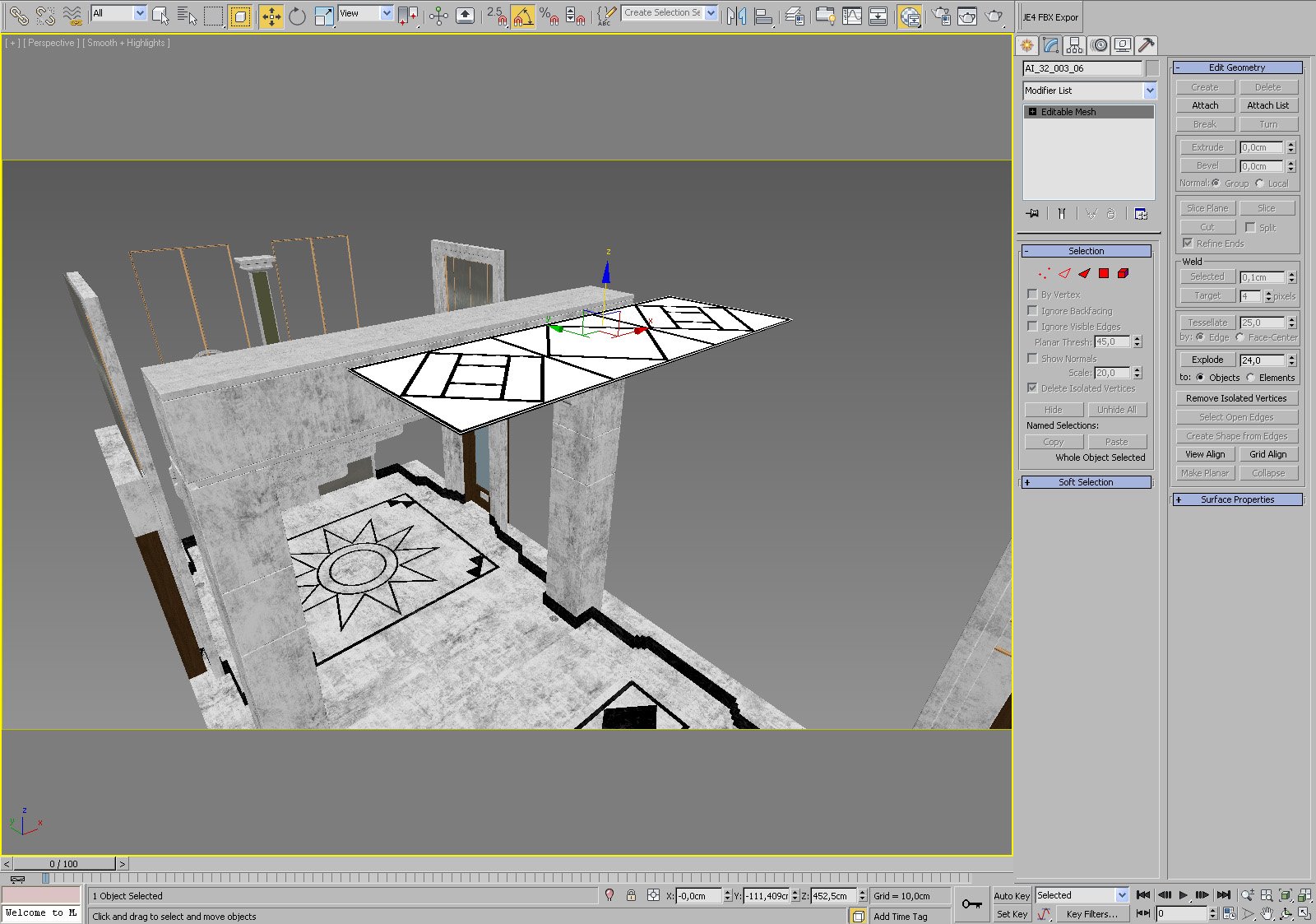

Click on image to enlarge nr_ae32_s03_0023_Layer_16_089.jpg

Top window - a plane and dark borders

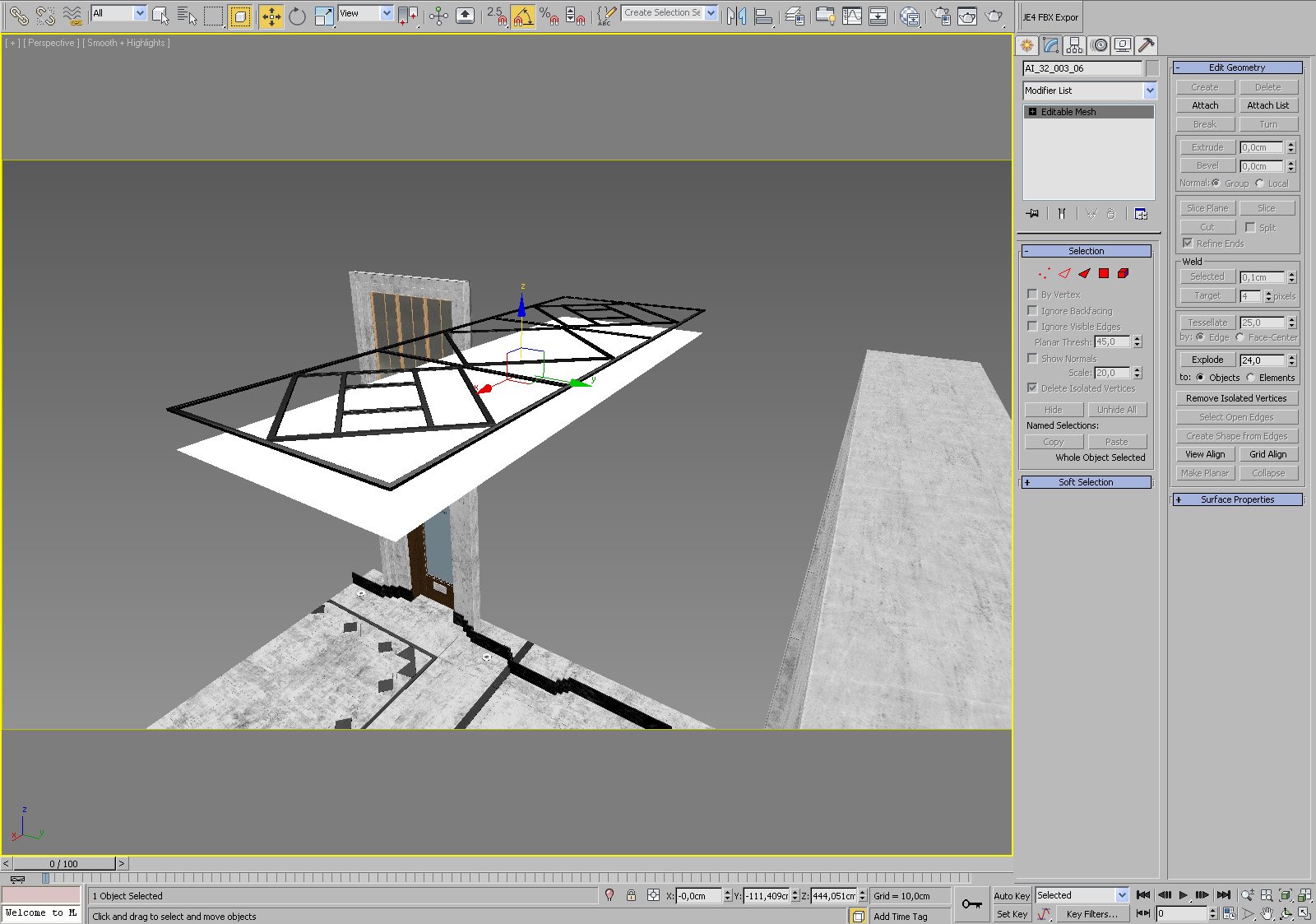

Click on image to enlargenr_ae32_s03_0021_Layer_18_087.jpg

Plane and borders are separate objects.





Materials

Click on image to enlarge nr_ae32_s03_0022_Layer_17_088.jpg

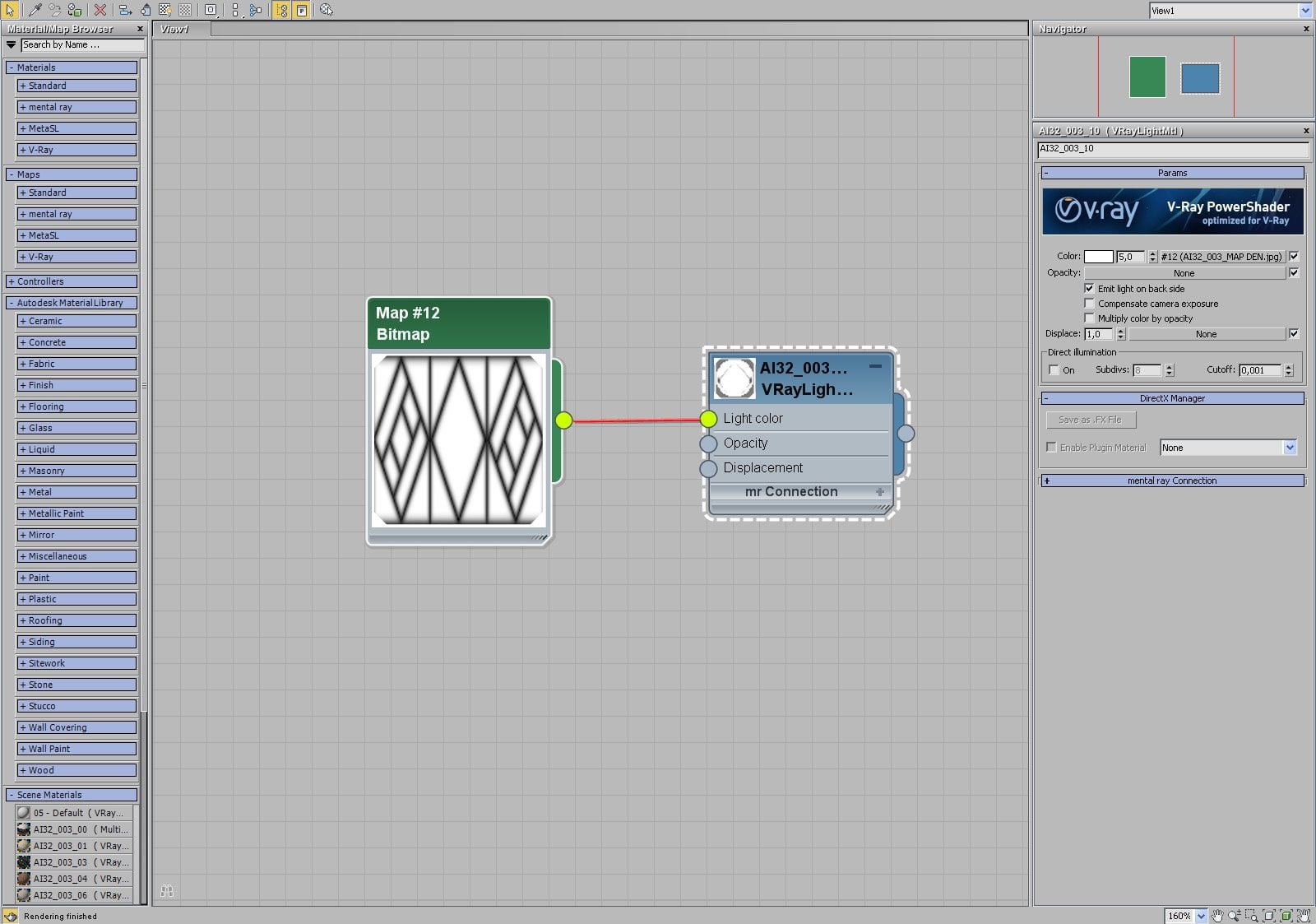

Plane has a VrayLightMaterial assigned.



Click on image to enlarge nr_ae32_s03_0020_Layer_19_086.jpg

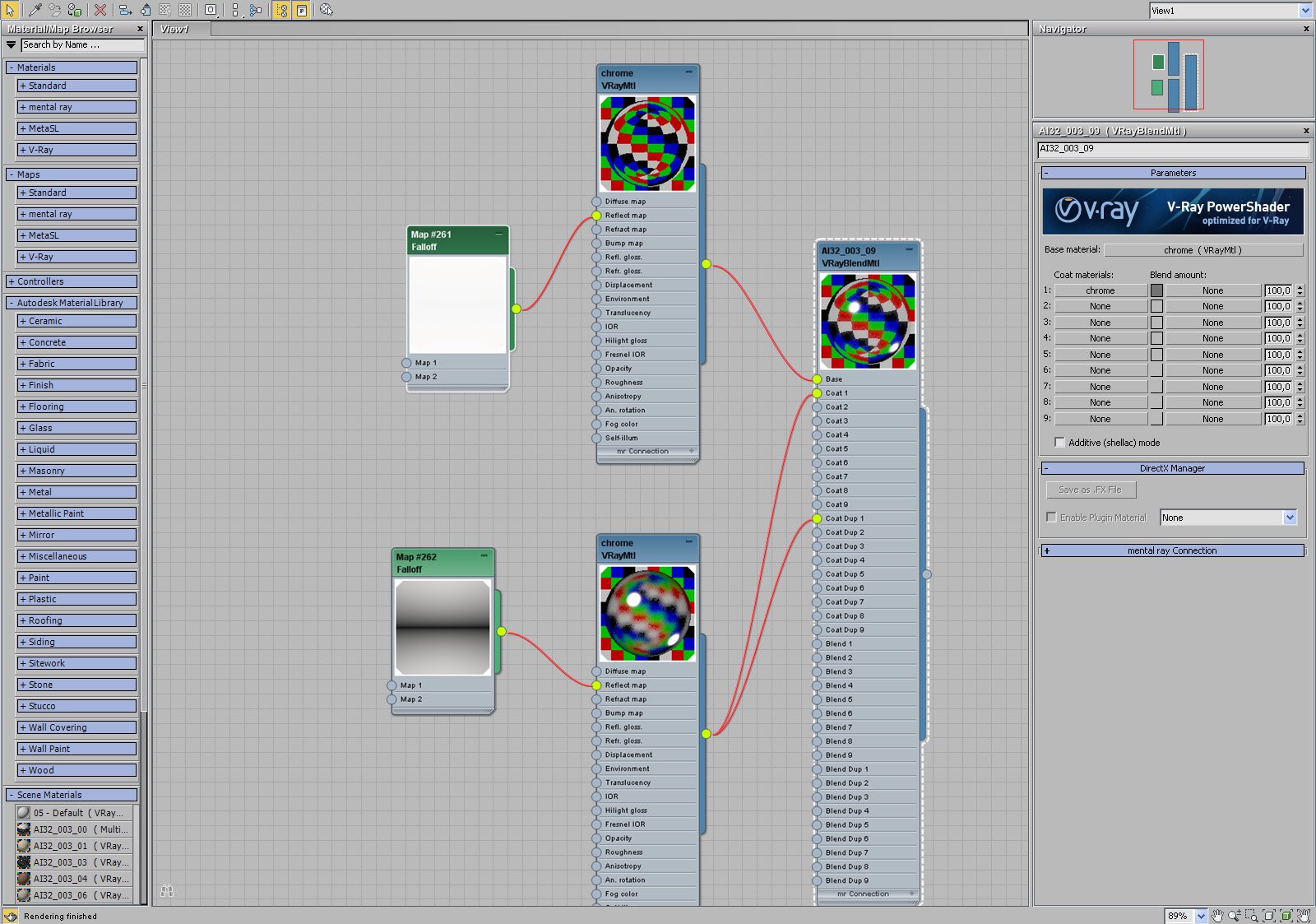

Dark border metallic material

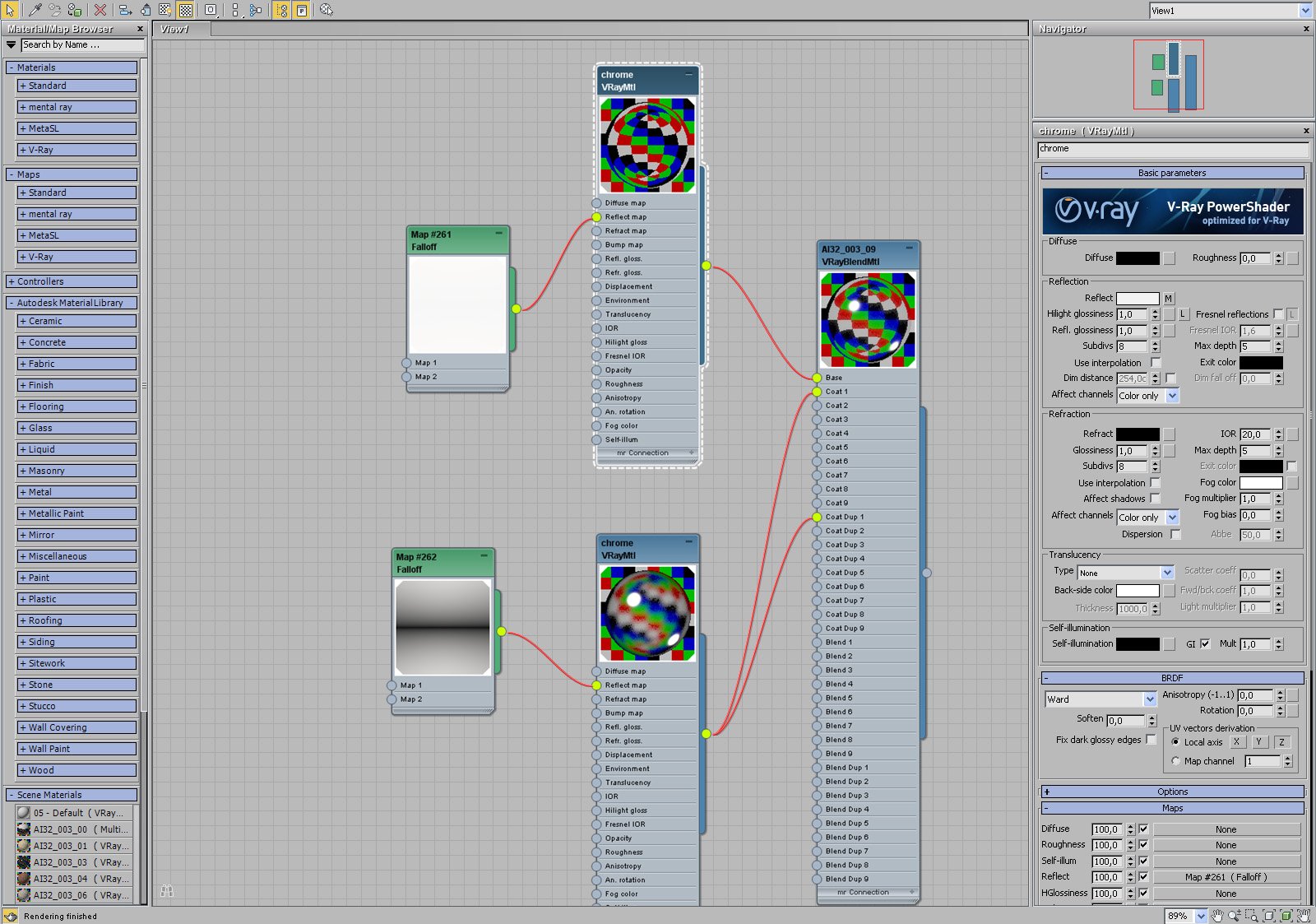

Click on image to enlarge nr_ae32_s03_0019_Layer_20_085.jpg

Base material settings.

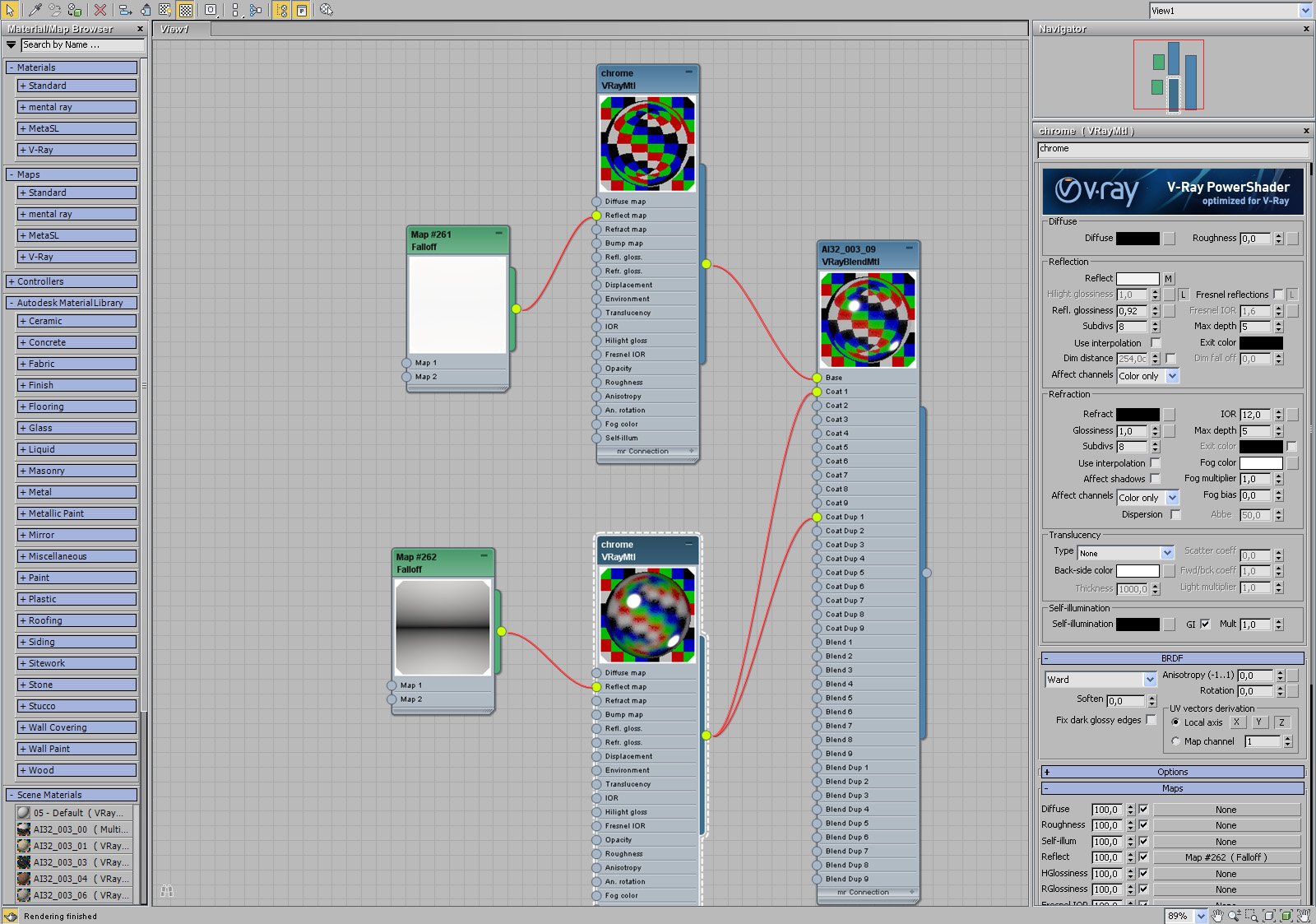

Click on image to enlarge nr_ae32_s03_0018_Layer_21_084.jpg

Coat material settings

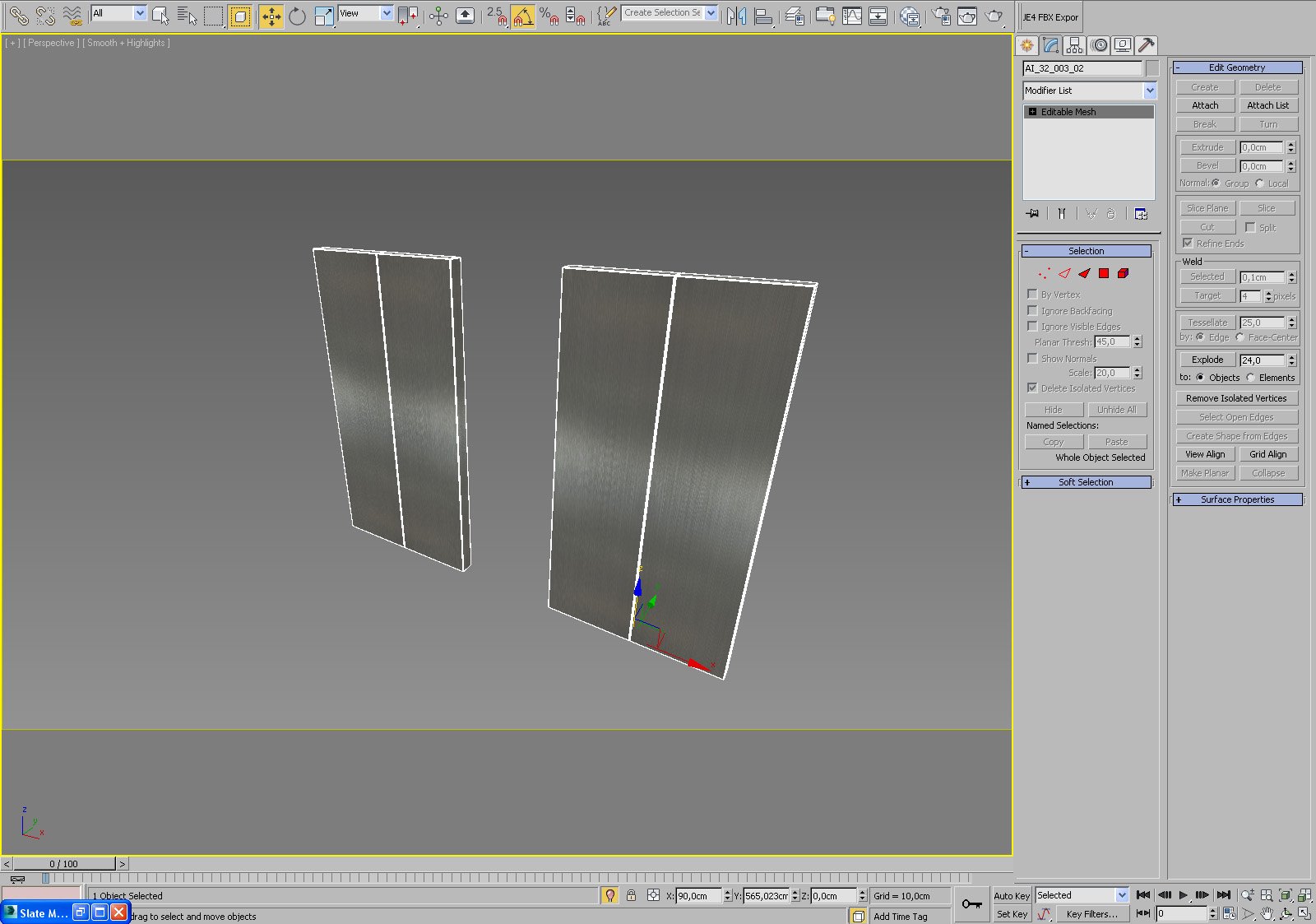

Click on image to enlarge nr_ae32_s03_0017_Layer_22_083.jpg

Elevator doors.

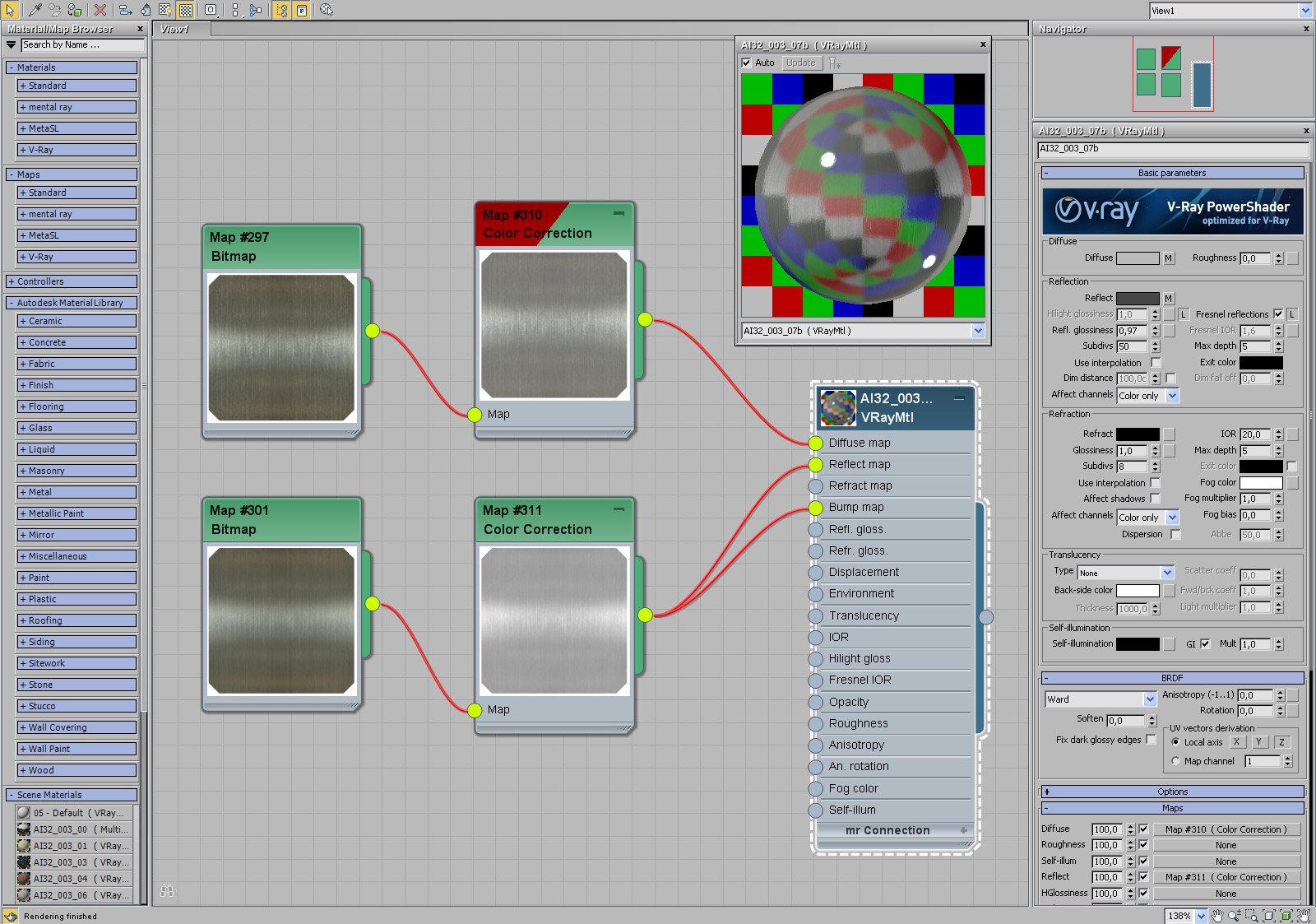

Click on image to enlarge nr_ae32_s03_0016_Layer_23_082.jpg

Elevator doors - material settings.

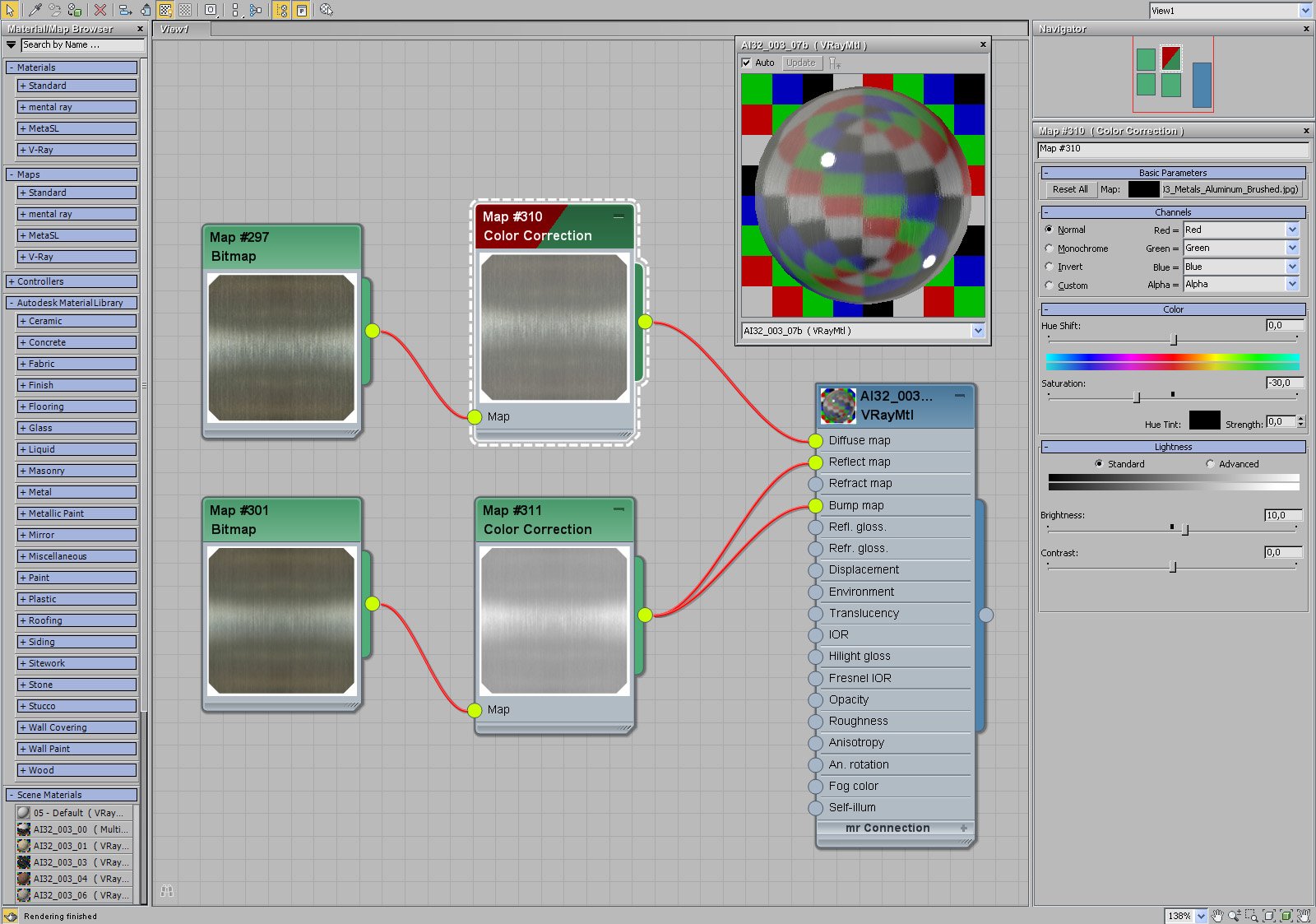

Click on image to enlarge nr_ae32_s03_0015_Layer_24_081.jpg

Elevator doors - material settings - color correction 1

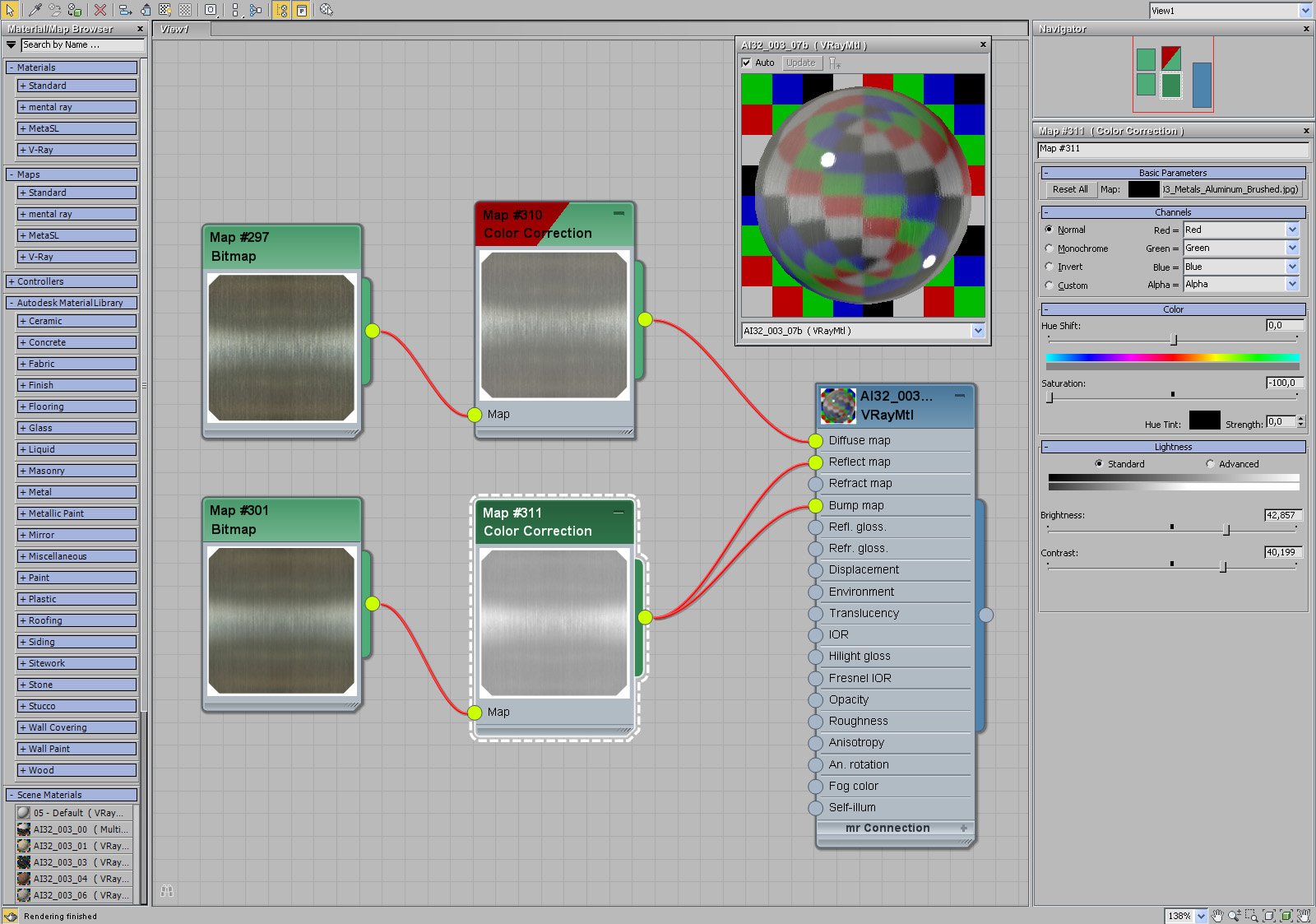

Click on image to enlarge nr_ae32_s03_0014_Layer_25_080.jpg

Elevator doors - material settings - color correction 2

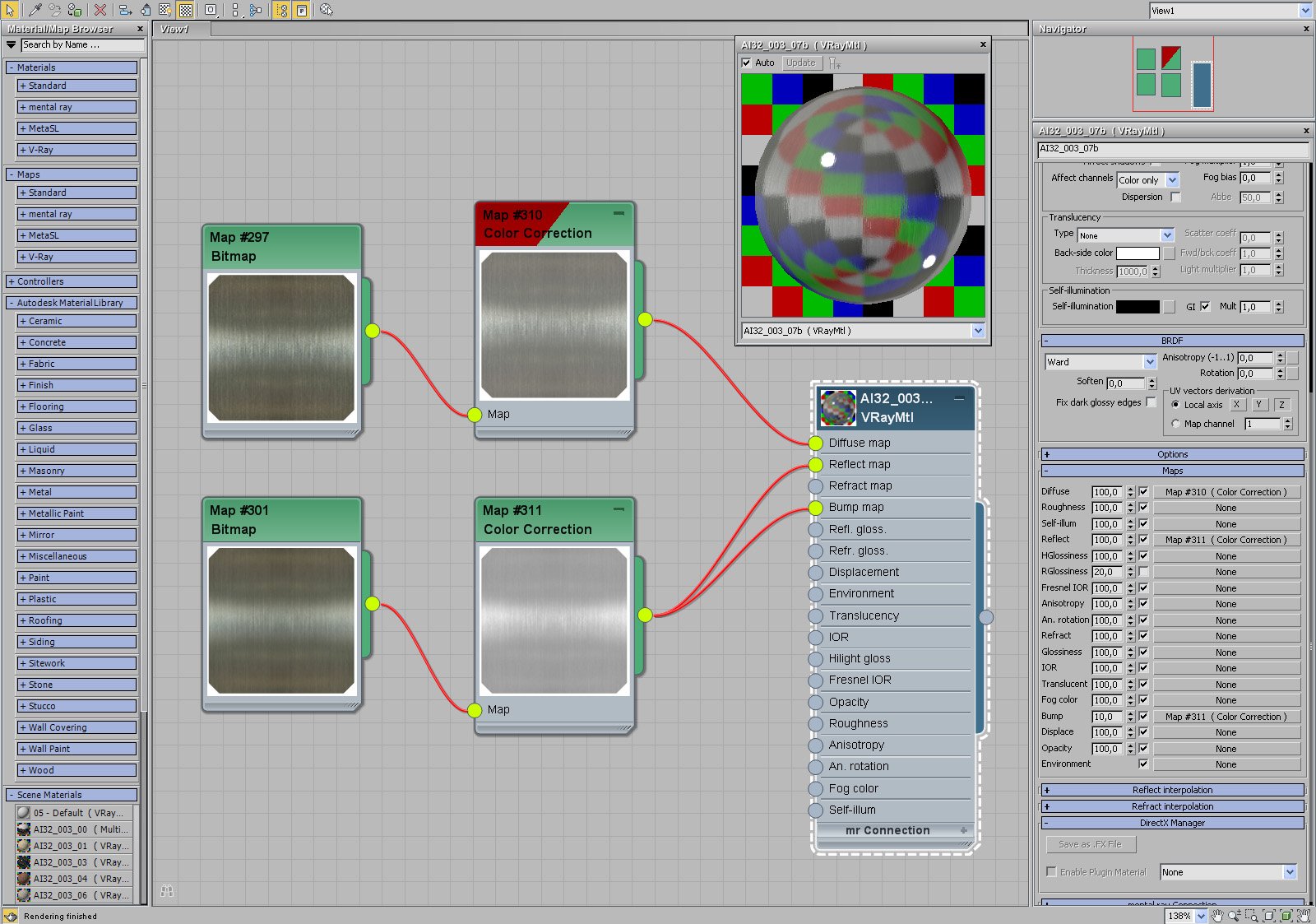

Click on image to enlarge nr_ae32_s03_0013_Layer_26_079.jpg

Elevator doors - material settings - maps.

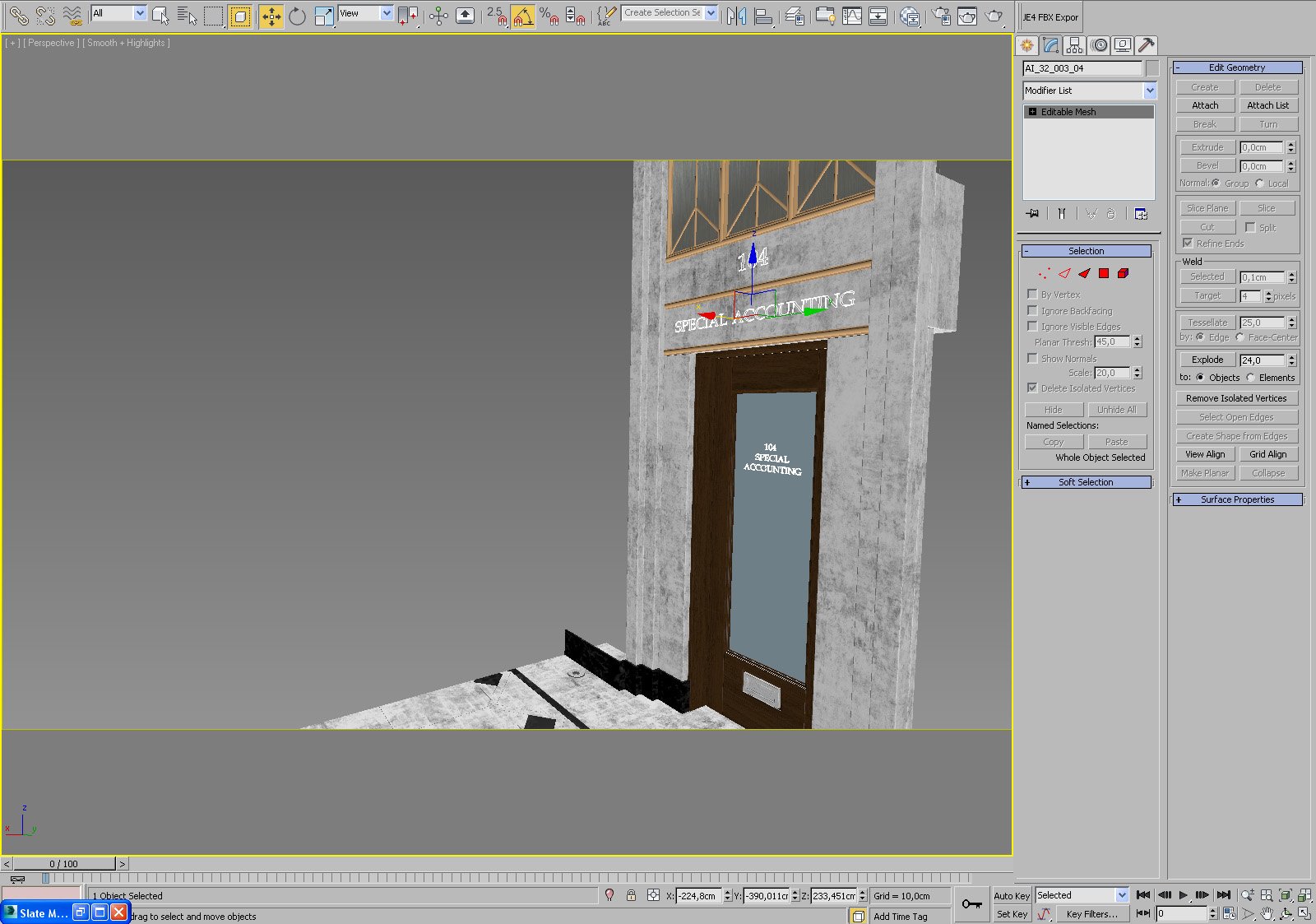

Click on image to enlarge nr_ae32_s03_0012_Layer_27_078.jpg

Doors





Click on image to enlarge nr_ae32_s03_0011_Layer_28_077.jpg

Text on (and above) the doors is a separate object.

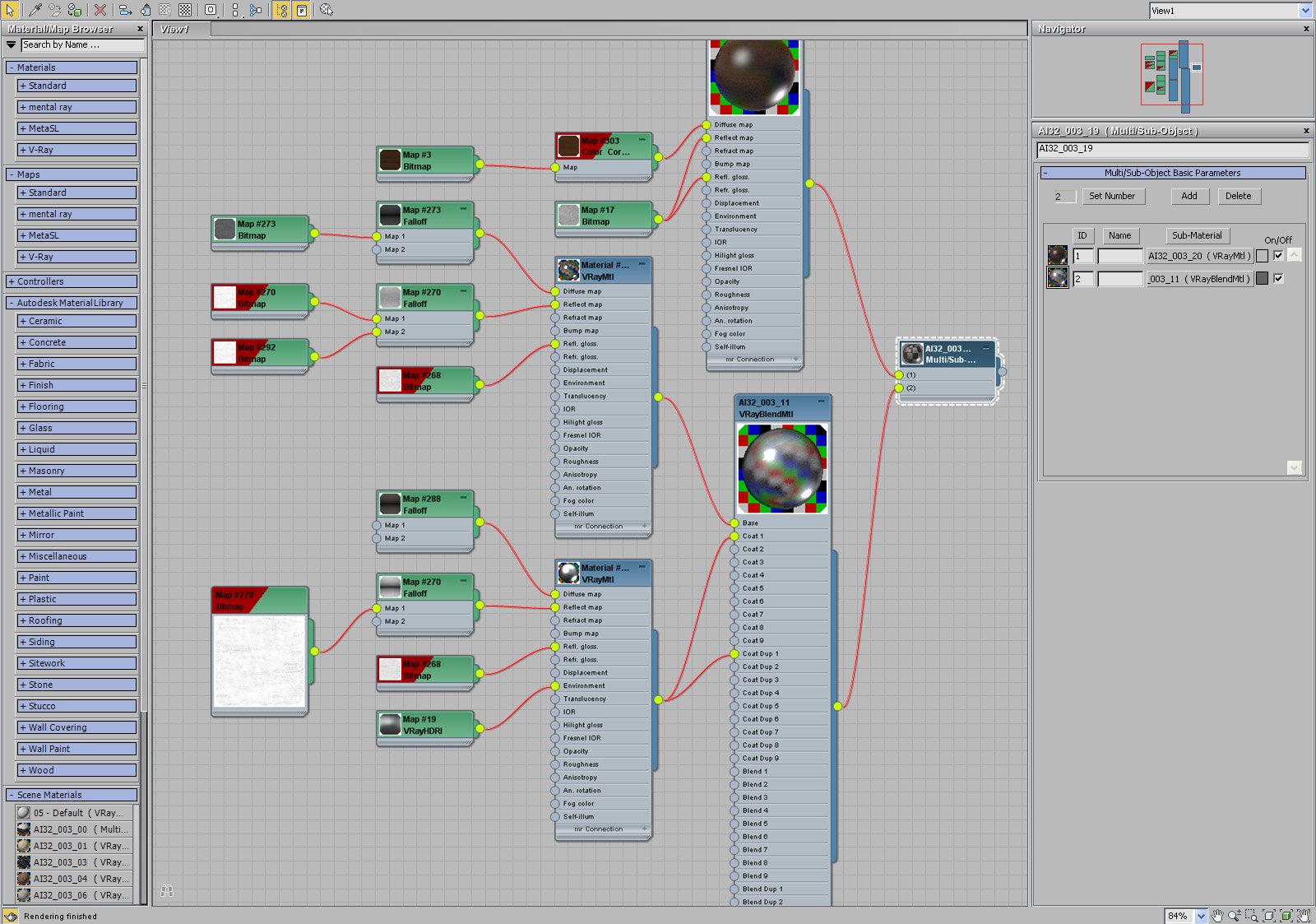

Click on image to enlarge nr_ae32_s03_0009_Layer_30_075.jpg

Doors material (multi material for wood and small metal mailbox).

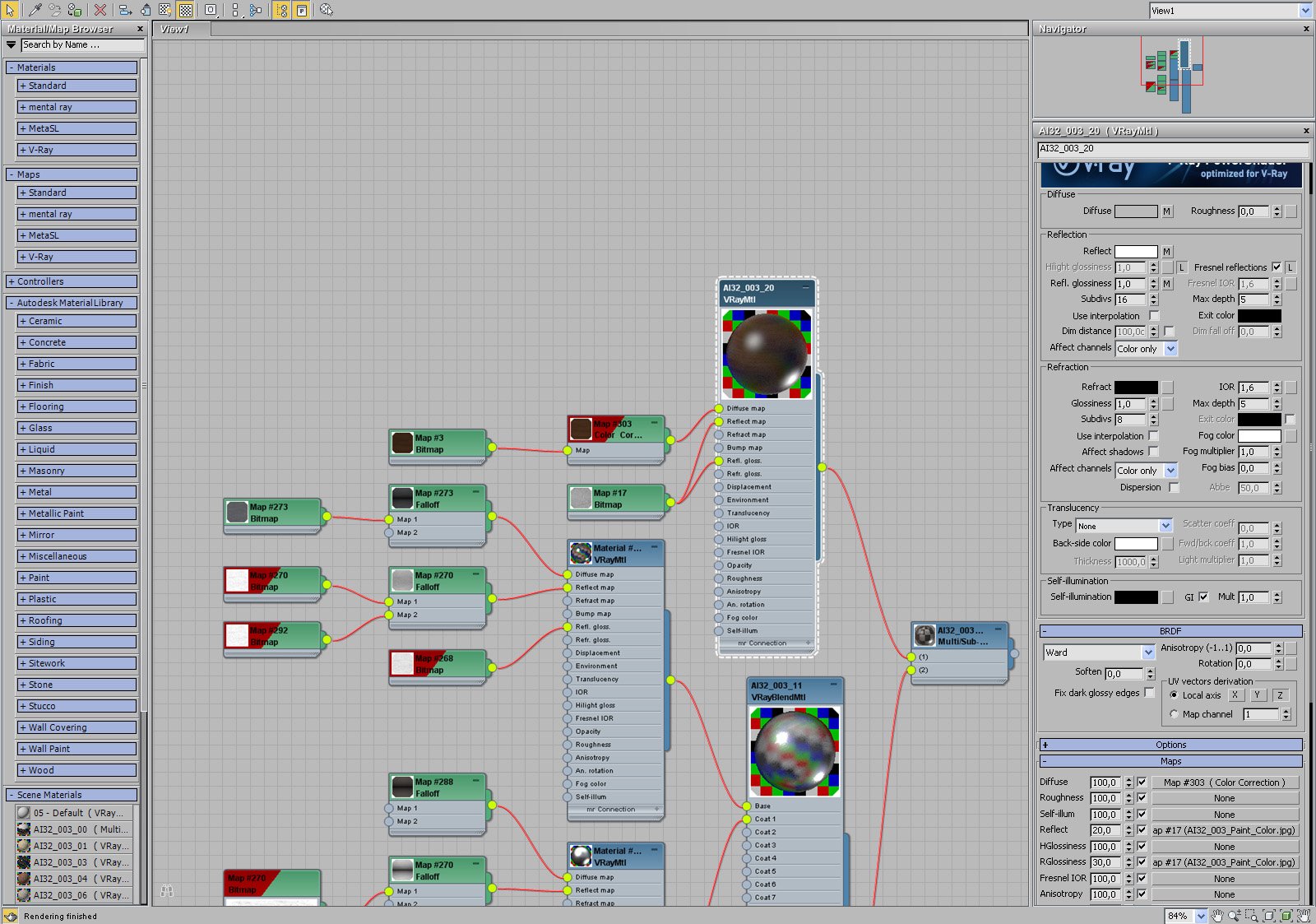

Click on image to enlarge nr_ae32_s03_0008_Layer_31_074.jpg

Wood material settings.

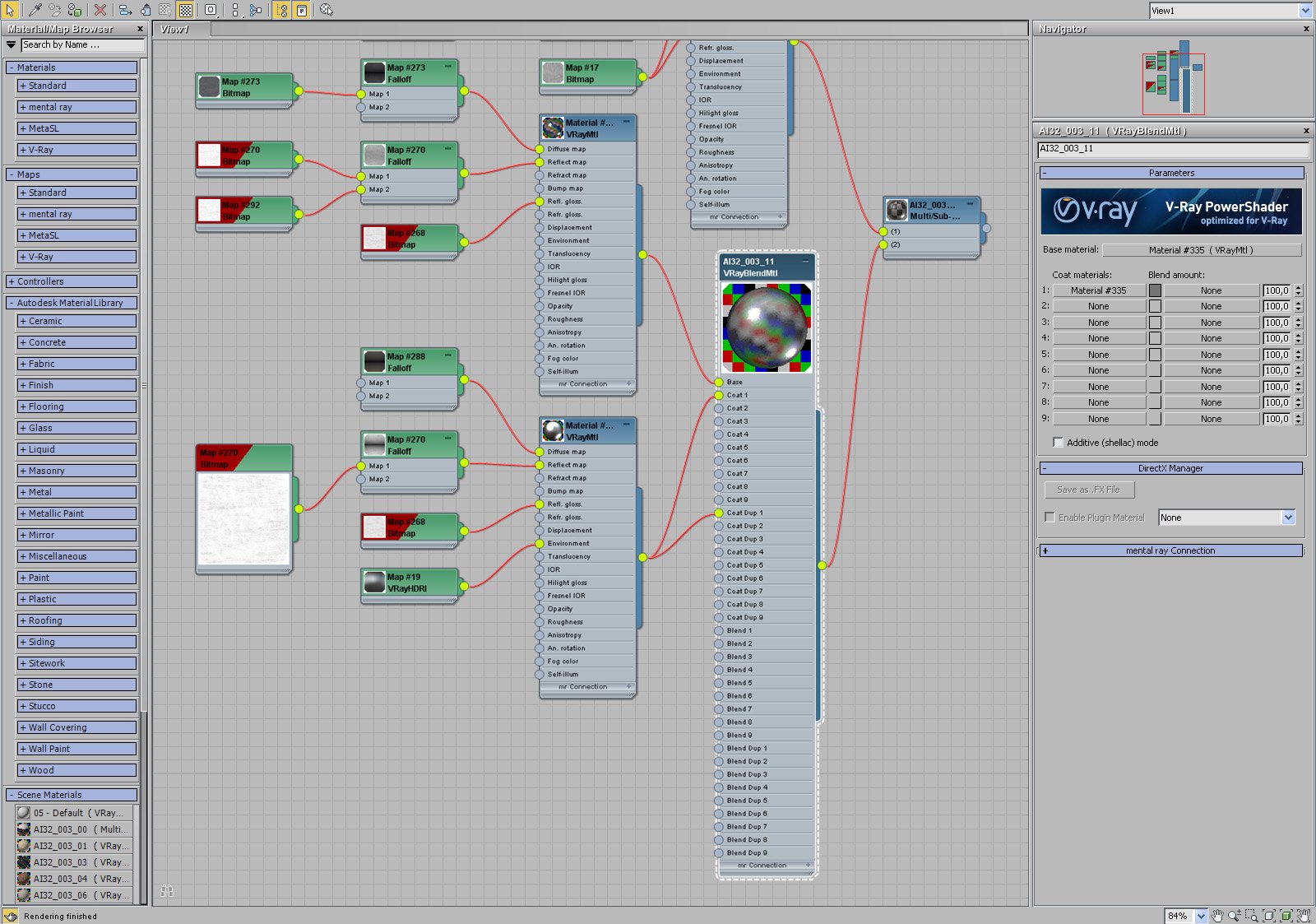

Click on image to enlarge nr_ae32_s03_0007_Layer_32_073.jpg

Metal material settings.

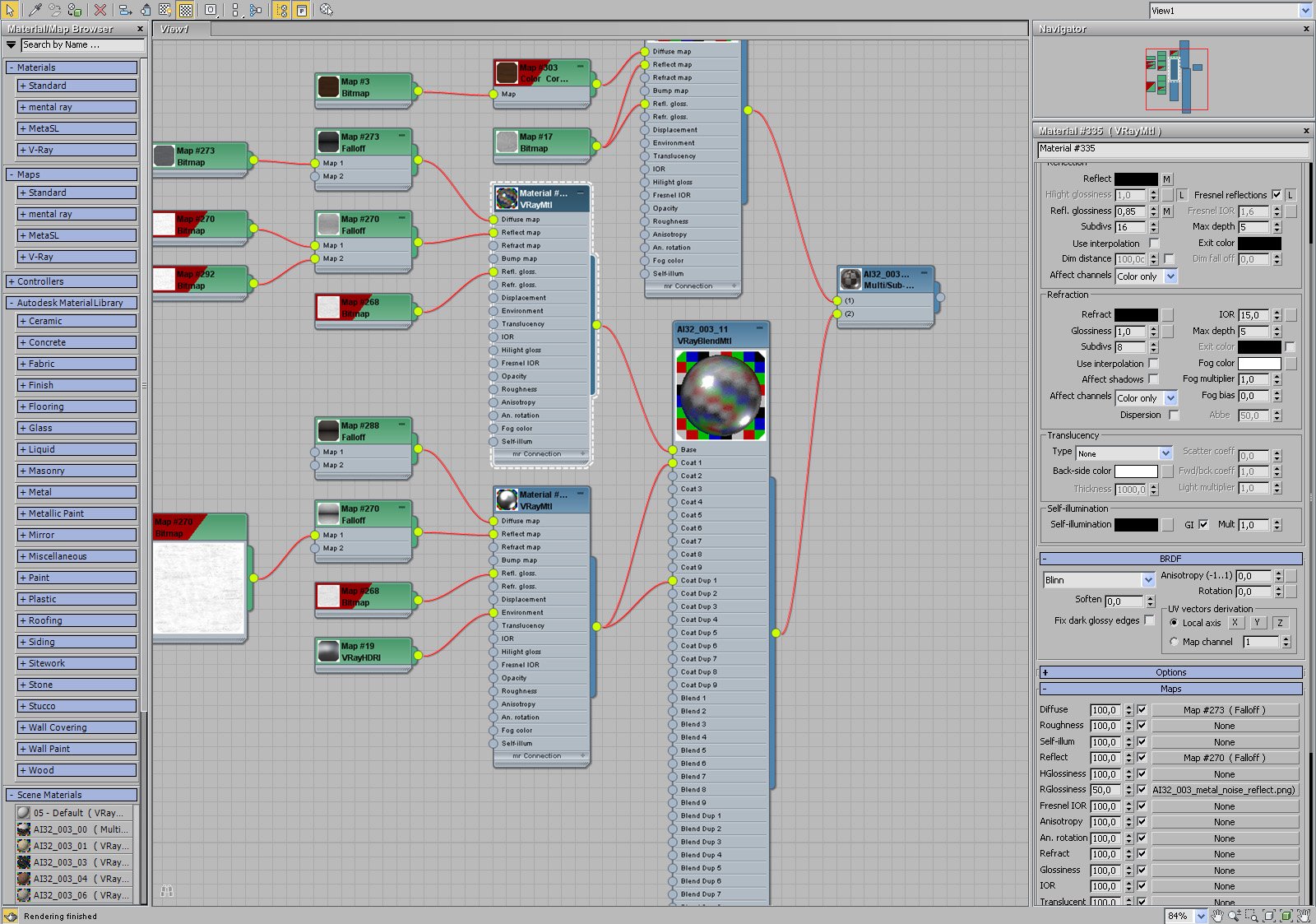

Click on image to enlarge nr_ae32_s03_0006_Layer_33_072.jpg

Metal material settings - base.



Click on image to enlarge nr_ae32_s03_0006_Layer_33_072.jpg

Metal material settings - base.

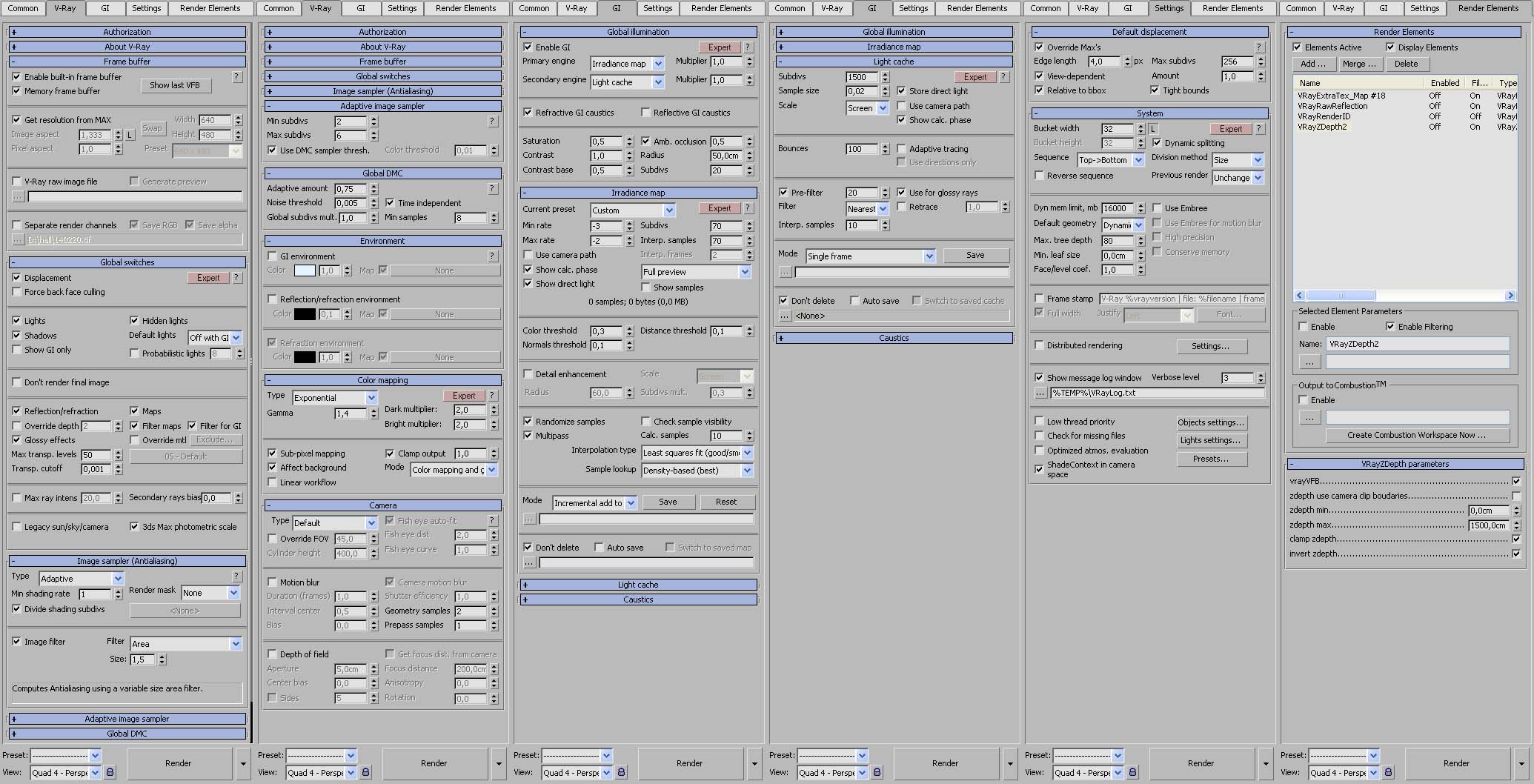

Click on image to enlarge render_settings_2.jpg

Render settings



Click on image to enlarge nr_passes_100.jpg

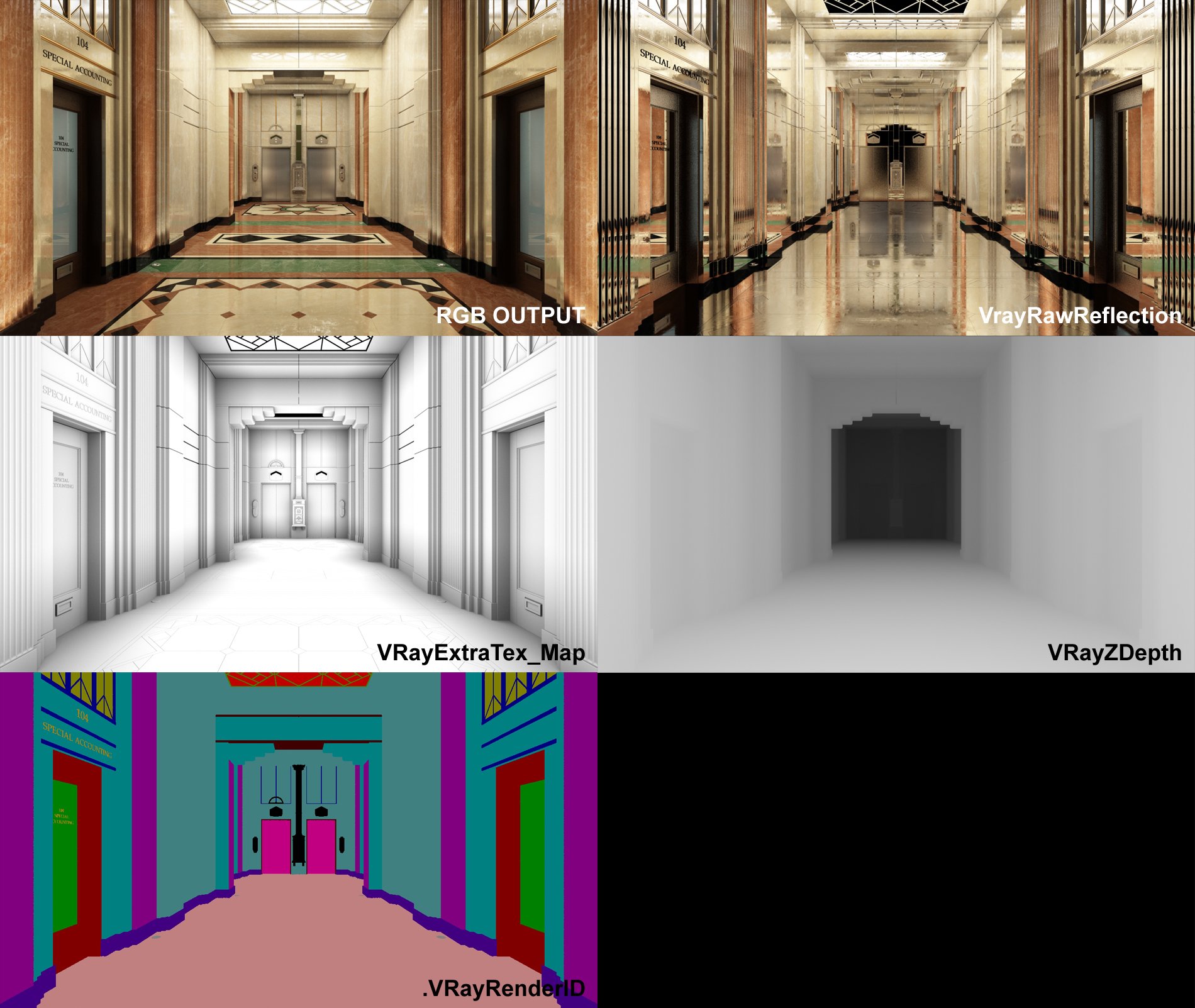

Passes




GIF animation of post-production in Photoshop

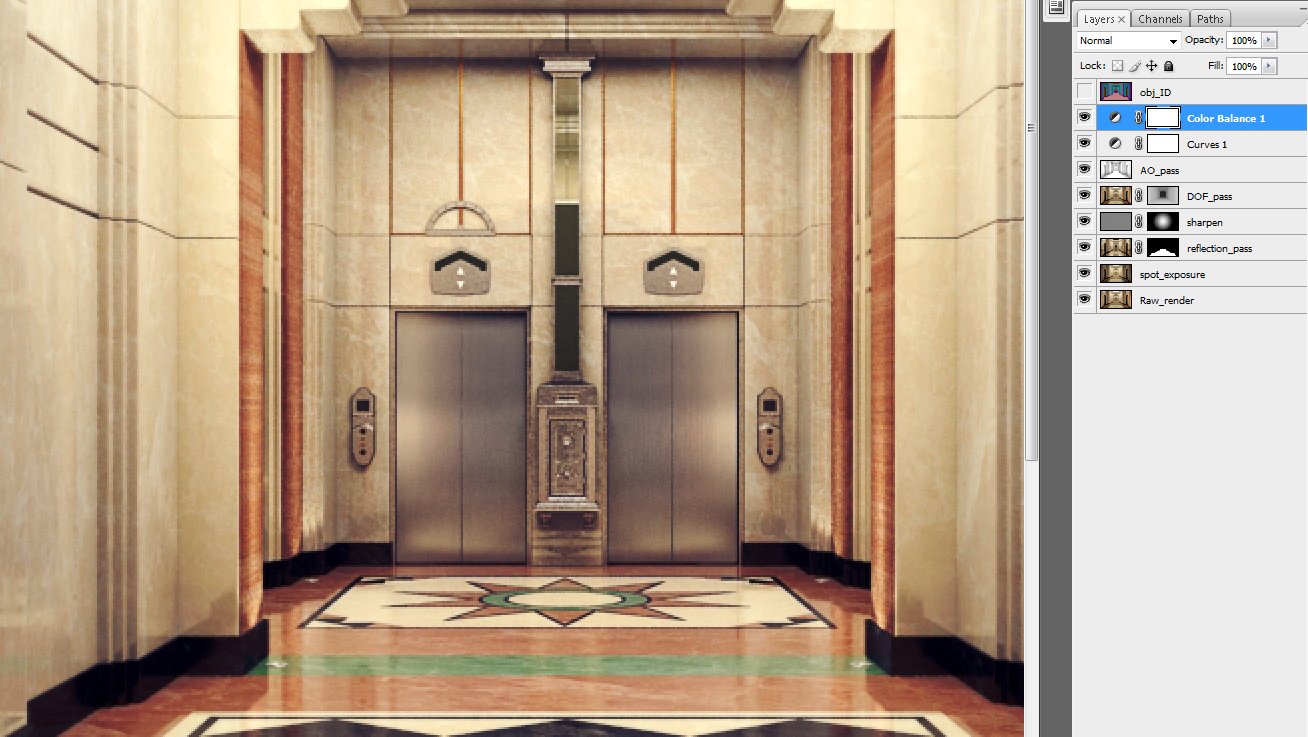

Click on image to enlarge nr_ps_stack_101.jpg

Photoshop layers.



Click on image to enlarge nr_AI32_003_PP_102.jpg

Final image.

Thanks for reading! :)
